A green low power consumption, compact structure two position two way solenoid valve

Home / Products / 2/2 ways solenoid valve / A green low power consumption, compact structure two position two way solenoid valve

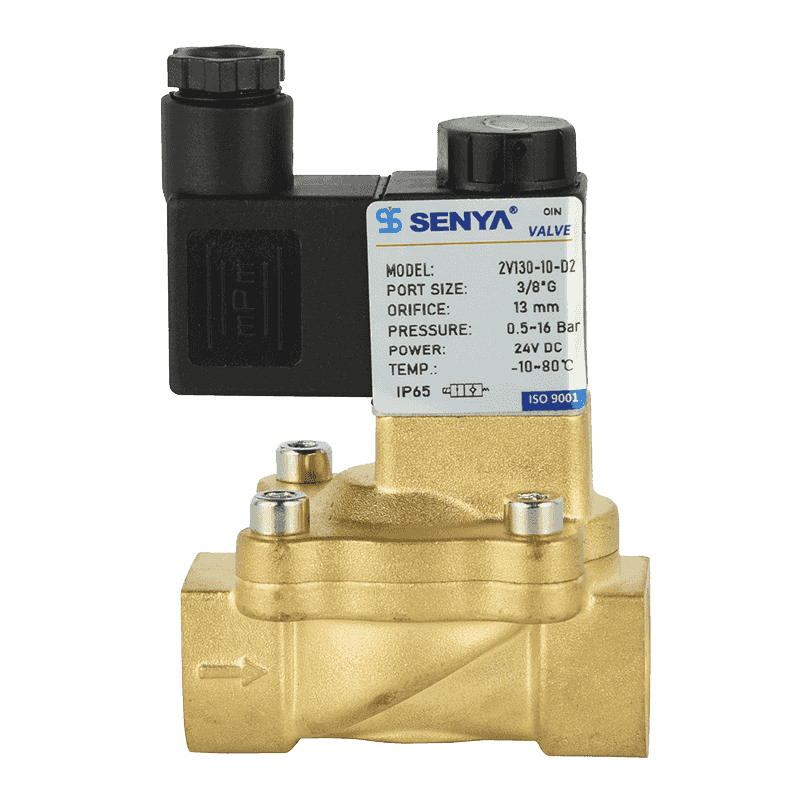

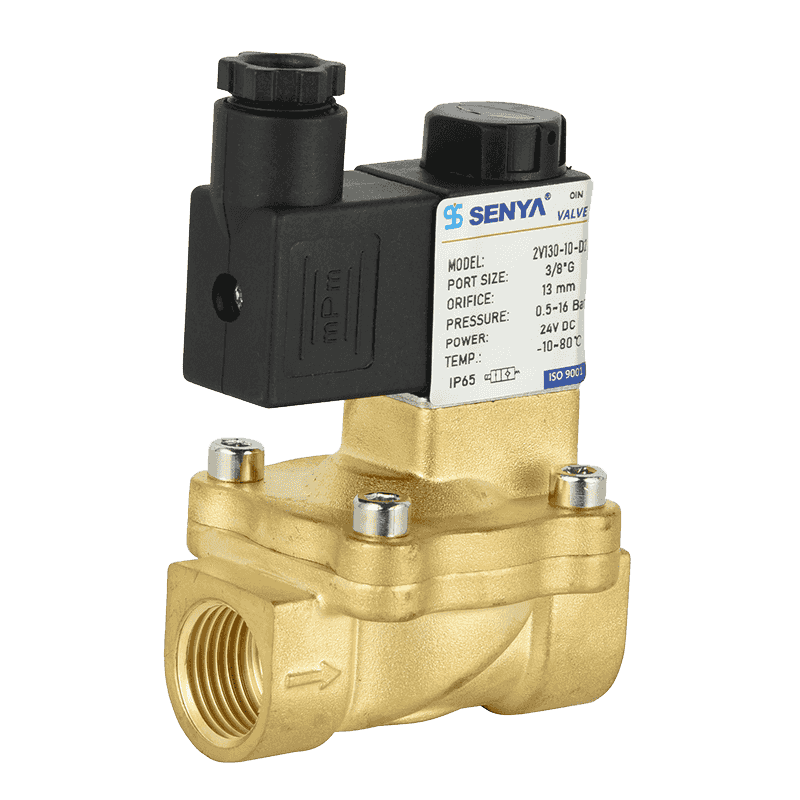

A green low power consumption, compact structure two position two way solenoid valve
  • A green low power consumption, compact structure two position two way solenoid valve
  • A green low power consumption, compact structure two position two way solenoid valve
  • A green low power consumption, compact structure two position two way solenoid valve

A green low power consumption, compact structure two position two way solenoid valve

+86 0574 88951829 Contact Us Download Pdf
Product Description
  • Imported moving iron core material, magnetic isolation
  • Pilot design can be used in low power but high flow scenarios
  • Millisecond-level response speed, meet the fast action scene
  • low energy consumption as low as 7Watts
  • The DIN connector is designed to be waterproof and dustproof to prevent the line from being corroded by water vapor
  • Easy to maintain, can complete parts replacement in a few minutes
  • working pressure range in 0.05-1.6 Mpa （7.25 -232  Psi)
PREV：A large water control 2/2 ways brass solenoid valve with high Impurity tolerance capacity
NEXT：Zero differential pressure start and acid, alkali resistant stainless steel normally open solenoid valve
  • Description

  • Product Description

    2V series 2/2 ways pilot operated brass solenoid valve. The valve has a low power consumption of up to 7 watts. Valve body volume is 30% smaller than similar pilot-operated valves; valve power consumption is 70% less than similar products. The valve has a large medium flow capacity with millisecond-level response. Simple water splash-proof cable connectors are available for some water splash-proof working environments. The pilot assembly has the advantages of simple structure, quick maintenance, and replacement in one minute. The features of the V series are suitable for general purposes.




    Product Parameters

    Category

    2/2 ways

    Way of action

    direct acting/pilot operated

    Series

    2V

    Body Material

    Brass

    Way to control

    solenoid valve

    Pressure resistance

    0.5-1.6 Mpa

    Sealing material

    NBR, VITON, EPDM

    Temperature

    -5 ~ 80 ℃ (120℃ optional)

    port range

    1/8"  ~  1"

    Normally open normally closed

    N.C.

    Wiring

    Flying leads/DIN connector/Water-proof coil

    Protection level

    IP43/IP67/IP68

    way to install

    bracket required

    Recommended installation method

    horizontally or vertically

    thread option

    BSP, NPT thread
