What exactly is the function of a pneumatic directional valve? A must-read for beginners!

In modern mechanical equipment, various pneumatic components such as cylinders, grippers, and actuators operate smoothly. While seemingly simple, the truly crucial element behind this smooth operation is the often-overlooked pneumatic directional valve. For beginners to pneumatic systems, the structure, function, and role of the directional valve often seem complex—why does such a small valve make a constant "clicking" sound when the equipment starts? Why does the cylinder extend and retract entirely depending on this component?

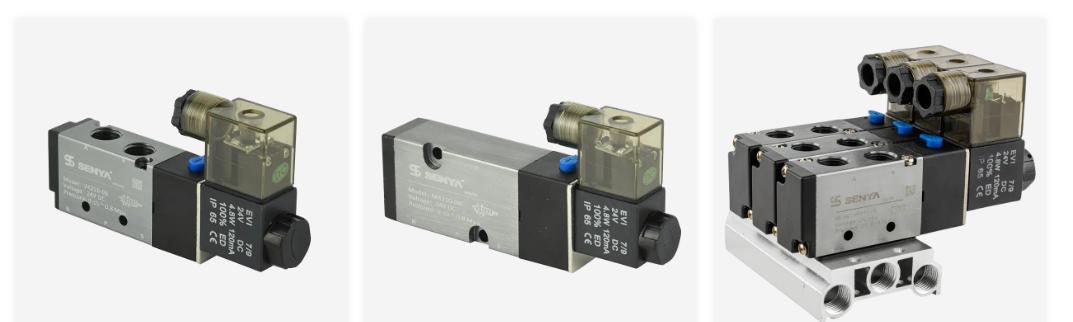

The essential function of a pneumatic directional valve is to direct the flow of compressed air, determining which chamber the air enters and from which it exits, thereby controlling the direction of the actuator's movement. Without a directional valve, air cannot be distributed systematically, the cylinder loses its ability to extend and retract, and the entire equipment's operation becomes impossible. The pneumatic directional valve's role in the equipment is far more important than many people imagine. It not only makes the actuator "move" but also undertakes the function of scheduling the action logic. For example, in an automatic packaging machine, actions such as feeding, sealing, pressing, and returning must be performed in a predetermined sequence. The direction switching at each step relies on a directional valve responding to a signal. When the PLC outputs an electrical signal, the electromagnet engages, the valve core moves, the air path switches, and the cylinder begins to move. After the action is completed, another signal arrives, the valve switches again, and the action proceeds to the next step. The whole process seems simple, but in reality, each step is coordinated by the directional valve to ensure the equipment operates according to a logical rhythm.

Besides determining the direction of the actuator's movement, pneumatic directional valves also bear the responsibility for system safety and stability. In industrial applications, equipment must remain safely shut down under abnormal conditions such as sudden power outages, emergency stops, and pressure fluctuations. A resettable directional valve can automatically switch back to its initial position, returning the cylinder to a safe position and preventing dangerous problems such as sudden drop of the robotic arm, uncontrolled gripper injury, or rapid collision of the slide. Especially in scenarios requiring specific positioning, such as clamping workpieces, maintaining pressure, or pausing operation, a 5/3 valve with a center position function can keep the cylinder in a "center-sealed," "center-leaking," or "center-pressure" state, achieving precise stopping or preventing residual pressure accumulation. It can be said that the directional control valve not only controls the action but also acts as a guardian of the entire system's operation.

In practical applications, there are many types of directional control valves, with different structures determining different usage scenarios and functional characteristics. The terms "3/2 valve," "5/2 valve," and "5/3 valve," which beginners often hear, actually refer to the number of passages and positions of the valve. 3/2 valves are commonly used in single-acting cylinders or air-blowing circuits, with a simple structure and clear action; 5/2 valves are the most common choice in industrial equipment, used for the reciprocating motion of almost all double-acting cylinders; while 5/3 valves are suitable for mechanisms requiring precise positioning and pressure maintenance, such as robot positioning and holding force in pressing processes. Although the numbers may seem complex, once the meaning of passages and positions is understood, beginners can quickly grasp their working logic.

Although small in size, the pneumatic directional valve is the soul of the entire pneumatic system. It determines the airflow direction, action logic, safety strategy, and system stability, making it the most "commanding" component in the pneumatic circuit.
