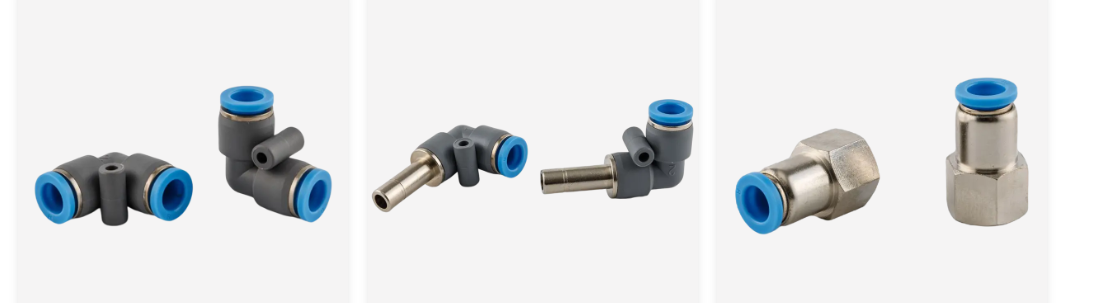

1. Definition and classification of pneumatic quick-connect fittings
Basic definition
Pneumatic quick-connect fittings are a device that achieves quick connection of air pipes through a mechanical locking mechanism. Its features include:
No tools required: connection/disconnection can be completed with one hand
Instant sealing: built-in O-ring or cone sealing structure to prevent gas leakage
Reusable: supports frequent plugging and unplugging (usually >10,000 times)
Main classification
According to function and structure, it can be divided into the following types:
Type |
Working Principle |
Typical Application |
Open and Closed at Both Ends |
The valve automatically closes when not connected, and opens in both directions after connection to prevent fluid leakage |
Pneumatic Tools, Automation Equipment |
Open at Both Ends |
No valve design, fluid flows freely when disconnected, suitable for non-pressure systems |
Low-pressure gas circuit, cooling system |
Single-way open and closed |
Only the mother body has a valve, and the daughter body is one-way after insertion |
Medical ventilator, vacuum equipment |
Threaded Quick-plug |
One end is threaded connection, the other end is a quick-plug structure, suitable for different interfaces |
Industrial gas circuit modification |
2. Structural principle and working process
Core components and functions
The typical structure of pneumatic quick-insert fittings includes the following components:
Clamping mechanism: stainless steel beads or spring claws, used to lock the air pipe (radial clamping force is usually >50N)
Sealing element: nitrile rubber (NBR) or fluororubber (FKM) O-ring, with a pressure resistance of up to 1MPa
Valve body assembly: spring-driven valve, which automatically closes the pipeline when disconnected
Shell material: PBT (chemical corrosion resistance), brass (high strength) or stainless steel (high temperature resistance)
Workflow (taking the two-end opening and closing type as an example)
Insertion stage:
The trachea pushes the ferrule to compress the spring, and the steel ball rolls outward to make way
The trachea pushes the sealing ring and pushes the valve to form an airflow path
Locking stage:
The ferrule is reset under the action of the spring, and the steel ball is stuck into the groove of the trachea to achieve mechanical fixation
The O-ring fits tightly with the outer wall of the trachea to form a seal
Disconnection stage:
Pull the ferrule backward, the steel ball is separated from the trachea, and the valve is automatically closed under the spring force
3. What should you pay attention to when using pneumatic push-in fittings?
Installation and connection specifications
- Air pipe pretreatment
Cutting requirements:
Use a special pipe cutter to ensure a smooth cut (inclination <3°)
Remove burrs (to prevent scratching the O-ring)
Cleaning steps:
Wipe the inner wall of the air pipe with lint-free cloth dipped in alcohol to prevent particles from entering the air path
- Correct connection method
Steps |
Operation points |
Wrong demonstration |
Insert the trachea |
Insert vertically to the bottom, and a "click" sound indicates that it is locked |
Inserting obliquely will result in a loose seal |
Tube removal operation |
Press the ring first and then remove the tube. Do not pull it violently directly |
Pull the tube directly to damage the locking mechanism |
Seal inspection |
Apply 1.5 times the working pressure after connection, and maintain the pressure for 5 minutes without leakage |
Only visual inspection ignores small leaks |
Key points for operation and maintenance
- Daily inspection items
Leak detection: Apply soapy water to the interface every week and observe bubbles (minor leaks require timely replacement of O-rings)
Trachea status: Check the trachea for cracks and hardening every month (aging trachea needs to be replaced immediately)
- Regular maintenance
Maintenance cycle |
Operation content |
Every 3 months |
Disassemble the joint, clean the inside, and check the elasticity of the O-ring (compression permanent deformation <15%) |
Every 1 year |
Replace all seals (even if there is no visible damage) |
- Prohibited operations and risk warnings
Prohibited behaviors
Use overpressure (exceeding the rated pressure will cause explosion)
Mixed media (such as oxygen joints mistakenly connected to grease pipelines causing explosions)
Plug and unplug under pressure (pressure must be released before operation to prevent airflow impact and injury)
